Product code: ERV-VI-INJ-01023

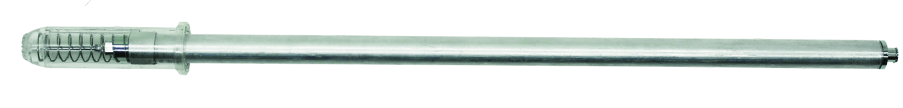

A 265 mm syringe extension with needle protection and a Luer-lock connection. Listed tube dimensions are 4.5 mm outer diameter and 2.5 mm inner diameter, with residual volume below 0.85 ml.
Key features at a glance
- 265 mm length: A shorter option than the 300 mm and 750 mm extensions.
- Luer-lock connection: The specified connection for this model.
- 2.5 mm inner diameter: Larger than the 2.0 mm bore listed for the compared extensions.
- Needle-protection configuration: A separately identified assembly with residual volume below 0.85 ml.
Choose your configuration
| Model | Length | Outer / inner diameter |
|---|---|---|
| ERV-VI-INJ-01023 | 265 mm | 4.5 / 2.5 mm |
| ERV-VI-INJ-01024 | 300 mm | 4.5 / 2.0 mm |
| ERV-VI-INJ-01019 | 750 mm | 4.5 / 2.0 mm |
Compare bore and connection as well as length
This model differs from the 300 mm extension in both length and internal diameter. Match the Luer-lock and protection arrangement to the intended equipment. The protection feature should not be treated as a guarantee against accidental injury.
Additional product details

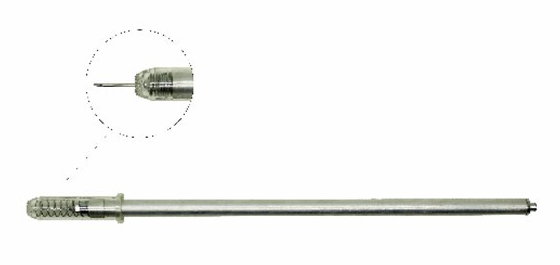

Shorter guarded extension
The 265 mm extension lists a 4.5 mm outer diameter and 2.5 mm inner diameter. Its bore differs from the 2.0 mm-bore extensions in this range even though the outside diameter is the same.
Confirm the assembled working end
Identify the guard, Luer-lock fitting and overall length in the enquiry. Matching the outer tube diameter alone is insufficient when the full extension must fit existing equipment.
Product photographs and details
Specifications
| Outer diameter | 4.5 mm |
|---|---|
| Inner diameter | 2.5 mm |
| Length | 265 mm |
| Connection | Luer-lock |
| Listed residual volume | Less than 0.85 ml |
Frequently asked questions
What specifications are listed for this product?
Outer diameter: 4.5 mm; Inner diameter: 2.5 mm; Length: 265 mm; Connection: Luer-lock; Listed residual volume: Less than 0.85 ml.
Which configuration should I include in an enquiry?
Specify product code ERV-VI-INJ-01023 and your required configuration. Confirm compatibility and included accessories with ERRASONVET before ordering.
How do I request a quotation?
Enter your quantity, destination country and configuration in the WhatsApp enquiry form. Review the prepared message in WhatsApp before sending it.
Compare extension lengths and diameter records
Veterinary Syringe Extension Buying Guide: Lengths, Diameters and Listed Residual Volume. Keep the exact extension SKU, tubing dimensions, fitting details and supplied parts together in the quotation request.
