340 ml Cow Milk Claw

Name: 340 ml Cow Milk Claw
SKU: ERV-DF-MIL-00009

Browse this product in: Milking Clusters & Milk Claws.

Product code: ERV-DF-MIL-00009

340 ml Cow Milk Claw - ERV-DF-MIL-00009

A cow milk claw with a listed capacity of 340 ml. Use the model code and capacity to identify it among the 300, 350 and 400 ml configurations in the range.

Key features at a glance

Capacity: 340 ml
Application: Cow milking equipment

Choose your configuration

Model	Capacity	Configuration check
ERV-DF-MIL-00009	340 ml	Confirm materials and valve arrangement
ERV-DF-MIL-00010	350 ml	Confirm materials and valve arrangement
ERV-DF-MIL-00011	400 ml	Confirm materials and valve arrangement
ERV-DF-MIL-00012	450 ml	Single layer; confirm fittings

Confirm the complete 340 ml configuration

Provide existing connection dimensions and confirm material, valve arrangement and supplied fittings. Those details are not specified by capacity alone, and no throughput rating is listed.

Request a quote for ERV-DF-MIL-00009

Additional product details

The 340 ml claw is listed with a PSU cap, a 22.5 mm milk outlet and 16 mm liner connections. Detail photographs show the outlet, cap and metal attachment plate. Check the tube and liner connections against the existing milking assembly before ordering; the listed component weight is 0.37 kg.

Product photographs and details

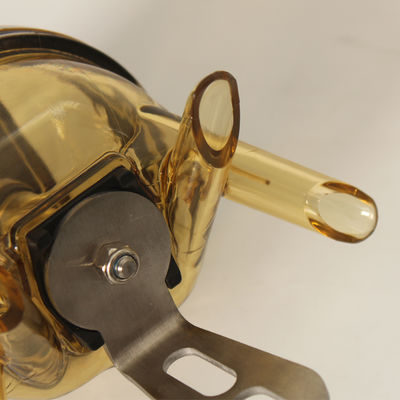

340 ml milk claw outlet detail — Close-up of the outlet and metal attachment plate.

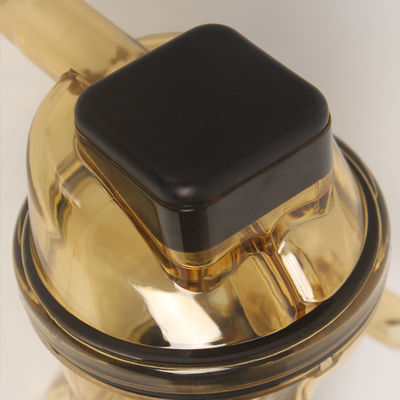

340 ml milk claw cap detail — Cap and transparent body seen from above.

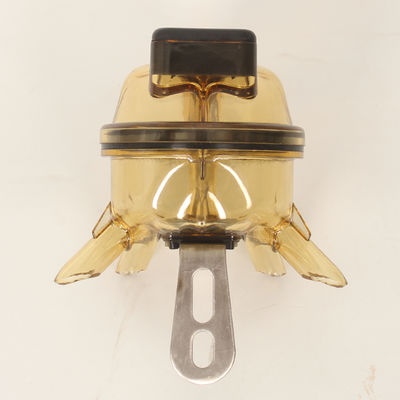

340 ml milk claw front view — Front view showing the lower connections and attachment plate.

Specifications

340 ml Cow Milk Claw (ERV-DF-MIL-00009) — specifications
Capacity	340 ml
Application	Cow milking equipment
Cap material	PSU
Milk outlet diameter	22.5 mm
Liner connection diameter	16 mm
Listed weight	0.37 kg

Frequently asked questions

What configuration is listed for this component?

Capacity: 340 ml; Application: Cow milking equipment.

How do I check compatibility before ordering?

Confirm hose connections, overall dimensions, operating requirements and included components for your milking installation before ordering. Include ERV-DF-MIL-00009, quantity and destination country in your enquiry.
