Calf Feeding Check Valve

Name: Calf Feeding Check Valve
SKU: ERV-DF-FED-00022

Browse this product in: Feeding & AI Equipments.

Product code: ERV-DF-FED-00022

Calf Feeding Check Valve - ERV-DF-FED-00022

A check valve component for calf feeding equipment. Identify the valve by model code and provide the mating connection dimensions when requesting a replacement for an existing feeding setup.

Key features at a glance

Product type: Check valve
Application: Calf feeding equipment

Choose your configuration

Selection point	Details
Product type	Check valve
Application	Calf feeding equipment
Fit check	Provide mating dimensions and equipment model
Supply scope	Confirm component configuration and quantities

Match the valve connections to the equipment

Send the feeder model and photographs of the existing valve, including both connecting ends. Confirm dimensions, material and operating requirements for the supplied component. The listing does not establish universal compatibility.

Request a quote for ERV-DF-FED-00022

Additional product details

This plastic check valve connects the feeding teat to the milk inlet. The connection drawing identifies a 29 mm outer diameter and 22 mm inner diameter at the teat side, with a 10 mm inner diameter at the milk inlet. Check both ends against the existing teat and tubing, and confirm the bucket mounting arrangement before selecting a replacement.

Product photographs and details

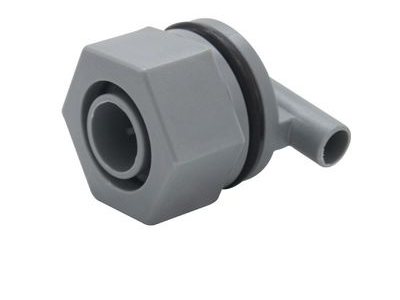

Plastic feeding check valve connection view — Connection view showing the threaded body, mounting flange and milk inlet.

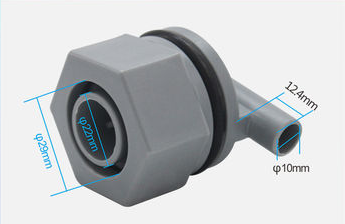

Feeding check valve connection dimensions — Connection drawing showing the teat-side diameters and the milk inlet dimensions.

Specifications

Calf Feeding Check Valve (ERV-DF-FED-00022) — specifications
Product type	Check valve
Application	Calf feeding equipment
Material	Plastic
Teat connection outer diameter	29 mm
Teat connection inner diameter	22 mm
Milk inlet inner diameter	10 mm

Frequently asked questions

What specifications are listed for this product?

Product type: Check valve; Application: Calf feeding equipment. Material: Plastic; Teat connection outer diameter: 29 mm.

What should I confirm before ordering?

Provide ERV-DF-FED-00022, quantity and destination country. Confirm dimensions, connection compatibility, included components and packaging. For powered equipment, confirm voltage and plug requirements.
