Flange-Mounted Milking Vacuum Regulator

Name: Flange-Mounted Milking Vacuum Regulator
SKU: ERV-DF-TUB-00017

Browse this product in: Milking Vacuum Pumps & Regulators.

Product code: ERV-DF-TUB-00017

Flange-Mounted Milking Vacuum Regulator - ERV-DF-TUB-00017

A milking vacuum regulator with a flange mounting design. Compare the mounting interface with the existing regulator and provide flange measurements when requesting a replacement.

Key features at a glance

Component type: Milking vacuum regulator
Mounting design: Flange

Choose your configuration

Model	Listed design
ERV-DF-TUB-00017	Flange-mounted design
ERV-DF-TUB-00018	Cylindrical body design

Match the regulator mounting

Send the flange diameter, bolt pattern, connection dimensions and current regulator label. Confirm the required vacuum range and regulating capacity; a matching flange appearance alone does not establish operating compatibility.

Request a quote for ERV-DF-TUB-00017

Additional product details

This flange-style regulator is listed as a 0.1 kg plastic component for portable milking equipment. Detail photographs show the lower connection, flange and top adjustment screw. Compare the mounting and connection dimensions with the existing air tank; request the appropriate regulator configuration for your system.

Product photographs and details

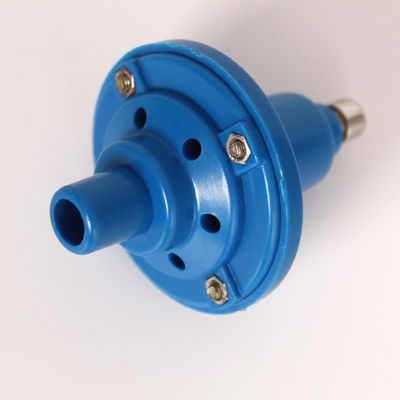

Flange vacuum regulator underside — Lower connection and flange viewed from below.

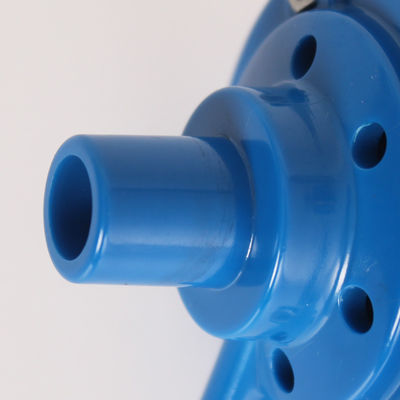

Vacuum regulator lower connection detail — Close-up of the lower connection and flange openings.

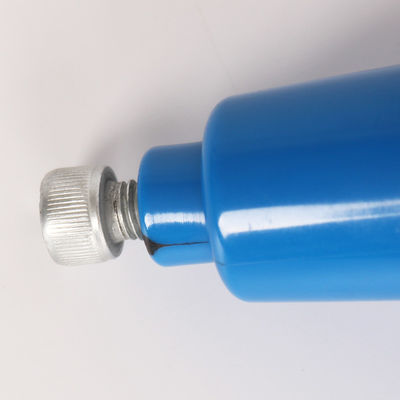

Vacuum regulator adjustment screw — Close-up of the upper adjustment screw and spring.

Specifications

Flange-Mounted Milking Vacuum Regulator (ERV-DF-TUB-00017) — specifications
Component type	Milking vacuum regulator
Mounting design	Flange
Material	Plastic
Listed weight	0.1 kg

Frequently asked questions

What specifications are listed?

Component type: Milking vacuum regulator; Mounting design: Flange.

What should I confirm before ordering?

Confirm pressure range, connection sizes, mounting dimensions and compatibility before ordering. Provide ERV-DF-TUB-00017, quantity and destination country.
