Veterinary Needles with Brass or Aluminium Hubs

Name: Veterinary Needles with Brass or Aluminium Hubs
SKU: ERV-VI-ADD-00010

Product code: ERV-VI-ADD-00010

Veterinary Needles with Brass or Aluminium Hubs - ERV-VI-ADD-00010

These veterinary needles combine stainless steel cannulas with brass or aluminium hub options. Fourteen listed gauge-and-length combinations are divided by hub material. Use the summary below to select the material and gauge, then check the full specification table for the exact listed combination and identification colour.

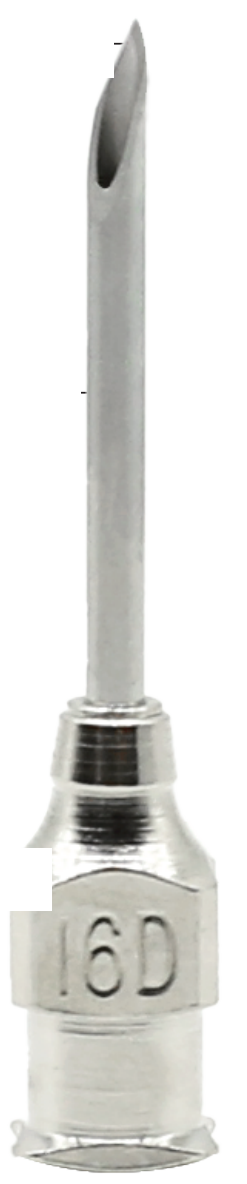

Brass-hub needle example with tri-bevel tip - ERV-VI-ADD-00010 — Brass-hub needle example with tri-bevel tip – ERV-VI-ADD-00010

Key features at a glance

Hub options: Brass; aluminium
Cannula material: Stainless steel
Packaging: 100 needles per box
Cartridge colour: Red
Listed configurations: 14

Choose your configuration

Hub material	Gauge	Listed lengths in inches
Brass	16 G	5/8; 3/4; 1; 1 1/2
Brass	18 G	1/2; 5/8; 3/4; 1; 1 1/2
Aluminium	14 G	1; 1 1/2
Aluminium	20 G	1/2; 1; 1 1/2

Build your quotation request

Specify hub material, gauge, length and quantity for each line item. Packing is listed at 100 needles per box. Confirm connection fit and any detection-system requirements for the selected needle; no universal detection result is implied.

Request a quote for ERV-VI-ADD-00010

Specifications

Veterinary Needles with Brass or Aluminium Hubs (ERV-VI-ADD-00010) — specifications
Hub options	Brass; aluminium
Cannula material	Stainless steel
Packaging	100 needles per box
Cartridge colour	Red
Listed configurations	14
Brass hub / 16 G x 5/8 inches	Identification colour: White; 100 needles per box
Brass hub / 16 G x 3/4 inches	Identification colour: White; 100 needles per box
Brass hub / 16 G x 1 inches	Identification colour: White; 100 needles per box
Brass hub / 16 G x 1 1/2 inches	Identification colour: White; 100 needles per box
Brass hub / 18 G x 1/2 inches	Identification colour: Pink; 100 needles per box
Brass hub / 18 G x 5/8 inches	Identification colour: Pink; 100 needles per box
Brass hub / 18 G x 3/4 inches	Identification colour: Pink; 100 needles per box
Brass hub / 18 G x 1 inches	Identification colour: Pink; 100 needles per box
Brass hub / 18 G x 1 1/2 inches	Identification colour: Pink; 100 needles per box
Aluminium hub / 14 G x 1 inches	Identification colour: Green; 100 needles per box
Aluminium hub / 14 G x 1 1/2 inches	Identification colour: Green; 100 needles per box
Aluminium hub / 20 G x 1/2 inches	Identification colour: Yellow; 100 needles per box
Aluminium hub / 20 G x 1 inches	Identification colour: Yellow; 100 needles per box
Aluminium hub / 20 G x 1 1/2 inches	Identification colour: Yellow; 100 needles per box

Frequently asked questions

What options and specifications are listed?

Hub options: Brass; aluminium; Cannula material: Stainless steel; Packaging: 100 needles per box; Cartridge colour: Red.

What should I confirm before ordering?

Specify hub material, gauge and length. Confirm connection compatibility and the required detection-system test results; catalogue performance claims are not a guarantee of detection in every system. Include ERV-VI-ADD-00010, quantity and destination country.

Related purchasing guide

Before requesting a quotation for Veterinary Needles with Brass or Aluminium Hubs, review the specification and supply checks in Veterinary Needle Buying Guide: Listed Sizes, Hubs and Packing. Include the product code, required configuration and quantity in your enquiry.
