Browse this product in: Milking Liners, Teat Cups & Plugs.
Product code: ERV-DF-LIN-00027
A milking liner with a listed length of 158 mm, shown with a 129 mm matched-shell reference. The liner drawing lists diameters of 20.5 / 22 / 12 mm, and the shell drawing lists 48 / 19 mm. Select using the complete drawing dimensions.
Key features at a glance
- Liner length: 158 mm
- Liner drawing diameters: 20.5 / 22 / 12 mm
- Matched shell length: 129 mm
- Matched shell drawing diameters: 48 / 19 mm
Choose your configuration
| Model | Liner length | Liner drawing diameters | Shell reference length | Shell drawing diameters |
|---|---|---|---|---|
| ERV-DF-LIN-00025 | 175 mm | 24 / 19.5 mm | 147 mm | 44 / 27 mm |
| ERV-DF-LIN-00026 | 148 mm | 20 / 24 / 9.5 mm | 108 mm | 41 / 23 mm |
| ERV-DF-LIN-00027 | 158 mm | 20.5 / 22 / 12 mm | 129 mm | 48 / 19 mm |
Match the full liner and shell drawing
The 158 mm liner uses a 129 mm shell reference and 48 / 19 mm shell drawing diameters. It is a separate short configuration from the 148 mm and 175 mm liners. The comparison identifies dimensions, not guaranteed interchangeability. Confirm material, operating requirements and whether a shell is included in the quotation.
Specifications
| Liner length | 158 mm |
|---|---|
| Liner drawing diameters | 20.5 / 22 / 12 mm |
| Matched shell length | 129 mm |
| Matched shell drawing diameters | 48 / 19 mm |
Frequently asked questions
What are the liner and matched-shell dimensions?
- Liner length: 158 mm.
- Liner drawing diameters: 20.5 / 22 / 12 mm.
- Matched shell length: 129 mm.

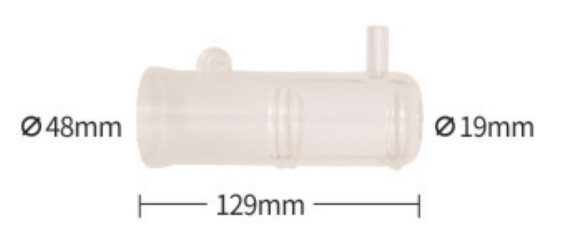

- Matched shell drawing diameters: 48 / 19 mm. Diameter values correspond to the labels in the product drawing.
Is the shell included with the liner?
The shell image is provided as a dimensional reference. Confirm liner material, compatible shell, supplied components and quantity before ordering.
Related products
306 mm Milking Liner for 140 mm Shell
ERV-DF-LIN-00010
293 mm Milking Liner for 140 mm Shell
ERV-DF-LIN-00011
293 mm Milking Liner for 155 mm Shell
ERV-DF-LIN-00012
Request a quotation
Prepare a WhatsApp enquiry with the product code, quantity and destination. Review and send the message in WhatsApp.
