Product code: ERV-DF-LIN-00011
A milking liner with a listed length of 293 mm, shown with a 140 mm matched-shell reference. The liner drawing lists diameters of 24 / 22.4 / 8 mm, and the shell drawing lists 44 / 20 mm. Select using the complete drawing dimensions.
Key features at a glance
- Liner length: 293 mm
- Liner drawing diameters: 24 / 22.4 / 8 mm
- Matched shell length: 140 mm
- Matched shell drawing diameters: 44 / 20 mm
Choose your configuration
| Model | Liner length | Liner drawing diameters | Shell reference length | Shell drawing diameters |
|---|---|---|---|---|
| ERV-DF-LIN-00010 | 306 mm | 24.5 / 26.5 / 12 mm | 140 mm | 42 / 25 mm |
| ERV-DF-LIN-00011 | 293 mm | 24 / 22.4 / 8 mm | 140 mm | 44 / 20 mm |
| ERV-DF-LIN-00018 | 305 mm | 23 / 22 / 10 mm | 140 mm | 43 / 19 mm |
| ERV-DF-LIN-00021 | 276 mm | 22 / 25.6 / 10 mm | 140 mm | 43 / 19 mm |
Match the full liner and shell drawing
This 293 mm liner uses a 140 mm shell reference. Another 293 mm liner uses a 155 mm shell and different drawing diameters; identify the model by the full dimension set. The comparison identifies dimensions, not guaranteed interchangeability. Confirm material, operating requirements and whether a shell is included in the quotation.
Specifications
| Liner length | 293 mm |
|---|---|
| Liner drawing diameters | 24 / 22.4 / 8 mm |

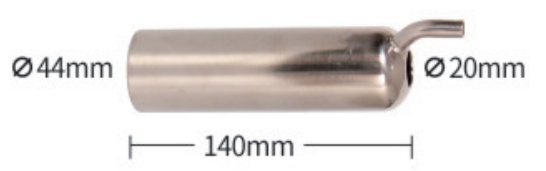

| Matched shell length | 140 mm |
| Matched shell drawing diameters | 44 / 20 mm |
Frequently asked questions
What are the liner and matched-shell dimensions?
- Liner length: 293 mm.
- Liner drawing diameters: 24 / 22.4 / 8 mm.
- Matched shell length: 140 mm.
- Matched shell drawing diameters: 44 / 20 mm. Diameter values correspond to the labels in the product drawing.
Is the shell included with the liner?
The shell image is provided as a dimensional reference. Confirm liner material, compatible shell, supplied components and quantity before ordering.
