Browse this product in: Milking Liners, Teat Cups & Plugs.
Product code: ERV-DF-LIN-00013

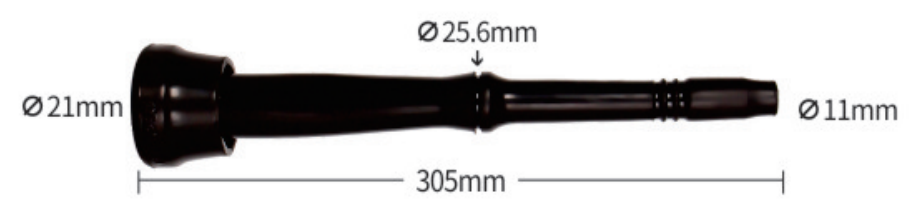

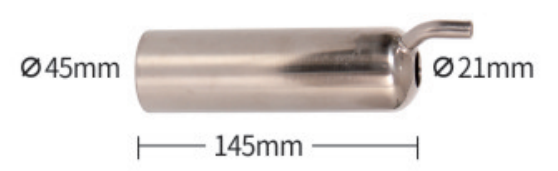

A milking liner with a listed length of 305 mm, shown with a 145 mm matched-shell reference. The liner drawing lists diameters of 21 / 25.6 / 11 mm, and the shell drawing lists 45 / 21 mm. Select using the complete drawing dimensions.
Key features at a glance
- Liner length: 305 mm
- Liner drawing diameters: 21 / 25.6 / 11 mm
- Matched shell length: 145 mm
- Matched shell drawing diameters: 45 / 21 mm
Choose your configuration
| Model | Liner length | Liner drawing diameters | Shell reference length | Shell drawing diameters |
|---|---|---|---|---|
| ERV-DF-LIN-00013 | 305 mm | 21 / 25.6 / 11 mm | 145 mm | 45 / 21 mm |
| ERV-DF-LIN-00015 | 312 mm | 24 / 21 / 10 mm | 148 mm | 44 / 20 mm |
| ERV-DF-LIN-00023 | 322 mm | 22 / 25.5 / 13.5 mm | 148 mm | 42.5 / 22.5 mm |
Match the full liner and shell drawing
The 305 mm liner here uses a 145 mm shell reference. The other 305 mm liner in the range lists a 140 mm shell and different diameters; compare the complete drawing. The comparison identifies dimensions, not guaranteed interchangeability. Confirm material, operating requirements and whether a shell is included in the quotation.
Specifications
| Liner length | 305 mm |
|---|---|
| Liner drawing diameters | 21 / 25.6 / 11 mm |
| Matched shell length | 145 mm |
| Matched shell drawing diameters | 45 / 21 mm |
Frequently asked questions
What are the liner and matched-shell dimensions?
- Liner length: 305 mm.
- Liner drawing diameters: 21 / 25.6 / 11 mm.
- Matched shell length: 145 mm.
- Matched shell drawing diameters: 45 / 21 mm. Diameter values correspond to the labels in the product drawing.
Is the shell included with the liner?
The shell image is provided as a dimensional reference. Confirm liner material, compatible shell, supplied components and quantity before ordering.
