175 mm Milking Liner for 147 mm Shell

Name: 175 mm Milking Liner for 147 mm Shell
SKU: ERV-DF-LIN-00025

Browse this product in: Milking Liners, Teat Cups & Plugs.

Product code: ERV-DF-LIN-00025

175 mm Milking Liner for 147 mm Shell - ERV-DF-LIN-00025

A milking liner with a listed length of 175 mm, shown with a 147 mm matched-shell reference. The liner drawing lists diameters of 24 / 19.5 mm, and the shell drawing lists 44 / 27 mm. Select using the complete drawing dimensions.

Key features at a glance

Liner length: 175 mm
Liner drawing diameters: 24 / 19.5 mm
Matched shell length: 147 mm
Matched shell drawing diameters: 44 / 27 mm

Choose your configuration

Model	Liner length	Liner drawing diameters	Shell reference length	Shell drawing diameters
ERV-DF-LIN-00016	325 mm	24 / 28.5 / 10 mm	147 mm	44 / 27 mm
ERV-DF-LIN-00025	175 mm	24 / 19.5 mm	147 mm	44 / 27 mm

Match the full liner and shell drawing

The 175 mm liner lists two drawing diameters, 24 / 19.5 mm. No third liner diameter is supplied in this record, so do not infer it from other models. The comparison identifies dimensions, not guaranteed interchangeability. Confirm material, operating requirements and whether a shell is included in the quotation.

Request a quote for ERV-DF-LIN-00025

Specifications

175 mm Milking Liner for 147 mm Shell (ERV-DF-LIN-00025) — specifications
Liner length	175 mm
Liner drawing diameters	24 / 19.5 mm
Matched shell length	147 mm
Matched shell drawing diameters	44 / 27 mm

Frequently asked questions

What are the liner and matched-shell dimensions?

Liner length: 175 mm; Liner drawing diameters: 24 / 19.5 mm; Matched shell length: 147 mm; Matched shell drawing diameters: 44 / 27 mm. Diameter values correspond to the labels in the product drawing.

Is the shell included with the liner?

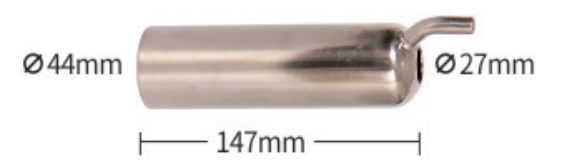

The shell image is provided as a dimensional reference. Confirm liner material, compatible shell, supplied components and quantity before ordering.
