Product code: ERV-DF-LIN-00021
A milking liner with a listed length of 276 mm, shown with a 140 mm matched-shell reference. The liner drawing lists diameters of 22 / 25.6 / 10 mm, and the shell drawing lists 43 / 19 mm. Select using the complete drawing dimensions.
Key features at a glance
- Liner length: 276 mm

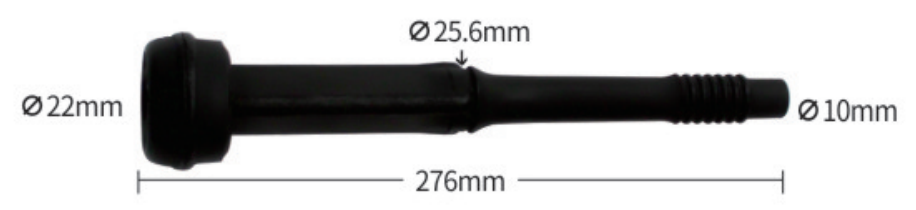

- Liner drawing diameters: 22 / 25.6 / 10 mm
- Matched shell length: 140 mm

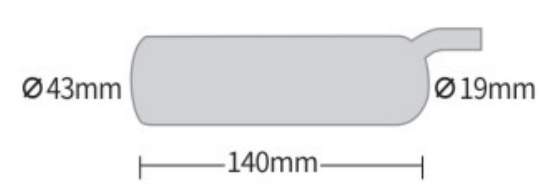

- Matched shell drawing diameters: 43 / 19 mm
Choose your configuration
| Model | Liner length | Liner drawing diameters | Shell reference length | Shell drawing diameters |
|---|---|---|---|---|
| ERV-DF-LIN-00010 | 306 mm | 24.5 / 26.5 / 12 mm | 140 mm | 42 / 25 mm |
| ERV-DF-LIN-00011 | 293 mm | 24 / 22.4 / 8 mm | 140 mm | 44 / 20 mm |
| ERV-DF-LIN-00018 | 305 mm | 23 / 22 / 10 mm | 140 mm | 43 / 19 mm |
| ERV-DF-LIN-00021 | 276 mm | 22 / 25.6 / 10 mm | 140 mm | 43 / 19 mm |
Match the full liner and shell drawing
The 276 mm liner uses a 140 mm shell reference with 43 / 19 mm shell drawing diameters. Sharing shell reference dimensions with a longer liner does not confirm liner interchangeability. The comparison identifies dimensions, not guaranteed interchangeability. Confirm material, operating requirements and whether a shell is included in the quotation.
Additional product details
Liner and shell pairing
This liner is specified as a 276 mm configuration for a 140 mm shell. Check the mouth, barrel and outlet dimensions together; a matching overall length does not establish that the liner will seat correctly.
Confirm the vent arrangement
The factory lists vented and non-vented options within the related liner range. Request the exact drawing and vent configuration for the delivered part, using the existing shell and liner as references.
Specifications
| Liner length | 276 mm |
|---|---|
| Liner drawing diameters | 22 / 25.6 / 10 mm |
| Matched shell length | 140 mm |
| Matched shell drawing diameters | 43 / 19 mm |
Frequently asked questions
What are the liner and matched-shell dimensions?
- Liner length: 276 mm.
- Liner drawing diameters: 22 / 25.6 / 10 mm.
- Matched shell length: 140 mm.
- Matched shell drawing diameters: 43 / 19 mm. Diameter values correspond to the labels in the product drawing.
Is the shell included with the liner?
The shell image is provided as a dimensional reference. Confirm liner material, compatible shell, supplied components and quantity before ordering.
