Product code: ERV-DF-LIN-00022
A milking liner with a listed length of 292 mm, shown with a 155 mm matched-shell reference. The liner drawing lists diameters of 25 / 19.4 / 8 mm, and the shell drawing lists 44 / 17 mm. Select using the complete drawing dimensions.
Key features at a glance
- Liner length: 292 mm
- Liner drawing diameters: 25 / 19.4 / 8 mm
- Matched shell length: 155 mm
- Matched shell drawing diameters: 44 / 17 mm
Choose your configuration
| Model | Liner length | Liner drawing diameters | Shell reference length | Shell drawing diameters |
|---|---|---|---|---|
| ERV-DF-LIN-00012 | 293 mm | 24 / 20.5 / 10 mm | 155 mm | 44 / 17 mm |
| ERV-DF-LIN-00014 | 325 mm | 25 / 22 / 10 mm | 155 mm | 44 / 19 mm |
| ERV-DF-LIN-00017 | 318 mm | 24 / 19.4 / 9.8 mm | 155 mm | 44 / 17 mm |
| ERV-DF-LIN-00022 | 292 mm | 25 / 19.4 / 8 mm | 155 mm | 44 / 17 mm |
| ERV-DF-LIN-00024 | 322 mm | 25 / 31 / 10 mm | 155 mm | 44 / 29 mm |
Match the full liner and shell drawing
The 292 mm liner is listed with a 155 mm shell reference and 44 / 17 mm shell diameters. Compare all liner drawing dimensions rather than relying on the shell reference shared by other models. The comparison identifies dimensions, not guaranteed interchangeability. Confirm material, operating requirements and whether a shell is included in the quotation.
Additional product details

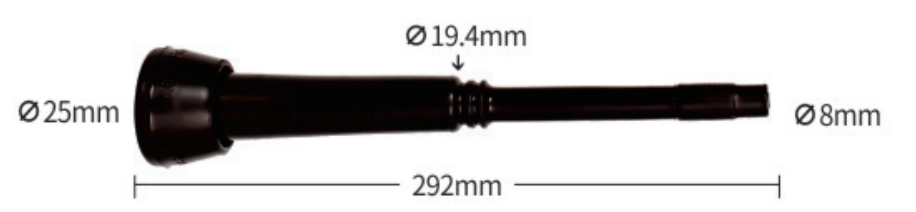

292 mm rubber liner
The factory identifies this as a black rubber liner with a 292 mm overall length. The reviewed shell dimensions are 155 mm long with the listed 44 / 17 mm drawing diameters.
Match the complete profile
Compare the liner mouth, barrel, tail and retaining surfaces with the existing part. Include a photo and measurements of the shell when ordering replacements so the fit can be checked beyond overall length.
Specifications
| Liner length | 292 mm |
|---|---|
| Liner drawing diameters | 25 / 19.4 / 8 mm |
| Matched shell length | 155 mm |
| Matched shell drawing diameters | 44 / 17 mm |
| Material | Rubber |
Frequently asked questions
What are the liner and matched-shell dimensions?
- Liner length: 292 mm.
- Liner drawing diameters: 25 / 19.4 / 8 mm.
- Matched shell length: 155 mm.
- Matched shell drawing diameters: 44 / 17 mm. Diameter values correspond to the labels in the product drawing.
Is the shell included with the liner?
The shell image is provided as a dimensional reference. Confirm liner material, compatible shell, supplied components and quantity before ordering.
