312 mm Milking Liner for 148 mm Shell

Name: 312 mm Milking Liner for 148 mm Shell
SKU: ERV-DF-LIN-00015

Browse this product in: Milking Liners, Teat Cups & Plugs.

Product code: ERV-DF-LIN-00015

312 mm Milking Liner for 148 mm Shell - ERV-DF-LIN-00015

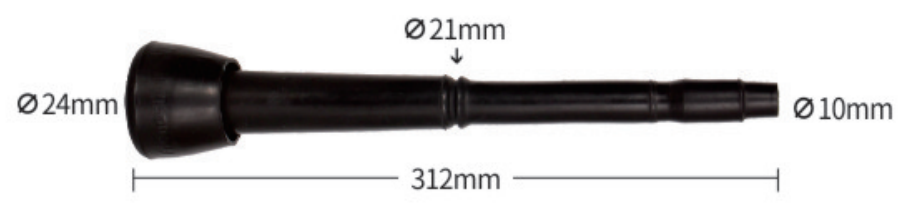

A milking liner with a listed length of 312 mm, shown with a 148 mm matched-shell reference. The liner drawing lists diameters of 24 / 21 / 10 mm, and the shell drawing lists 44 / 20 mm. Select using the complete drawing dimensions.

Key features at a glance

Liner length: 312 mm
Liner drawing diameters: 24 / 21 / 10 mm
Matched shell length: 148 mm
Matched shell drawing diameters: 44 / 20 mm

Choose your configuration

Model	Liner length	Liner drawing diameters	Shell reference length	Shell drawing diameters
ERV-DF-LIN-00015	312 mm	24 / 21 / 10 mm	148 mm	44 / 20 mm
ERV-DF-LIN-00023	322 mm	22 / 25.5 / 13.5 mm	148 mm	42.5 / 22.5 mm

Match the full liner and shell drawing

For this 312 mm liner, compare the 148 mm shell length and 44 / 20 mm shell drawing diameters. The separate 322 mm liner for a 148 mm shell lists a different diameter pair. The comparison identifies dimensions, not guaranteed interchangeability. Confirm material, operating requirements and whether a shell is included in the quotation.

Request a quote for ERV-DF-LIN-00015

Specifications

312 mm Milking Liner for 148 mm Shell (ERV-DF-LIN-00015) — specifications
Liner length	312 mm
Liner drawing diameters	24 / 21 / 10 mm
Matched shell length	148 mm
Matched shell drawing diameters	44 / 20 mm

Frequently asked questions

What are the liner and matched-shell dimensions?

Liner length: 312 mm.
Liner drawing diameters: 24 / 21 / 10 mm.
Matched shell length: 148 mm.
Matched shell drawing diameters: 44 / 20 mm. Diameter values correspond to the labels in the product drawing.

Is the shell included with the liner?

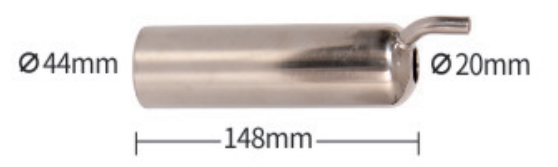

The shell image is provided as a dimensional reference. Confirm liner material, compatible shell, supplied components and quantity before ordering.
