315.8 mm Milking Liner for 148.8 mm Shell

Name: 315.8 mm Milking Liner for 148.8 mm Shell
SKU: ERV-DF-LIN-00019

Browse this product in: Milking Liners, Teat Cups & Plugs.

Product code: ERV-DF-LIN-00019

315.8 mm Milking Liner for 148.8 mm Shell - ERV-DF-LIN-00019

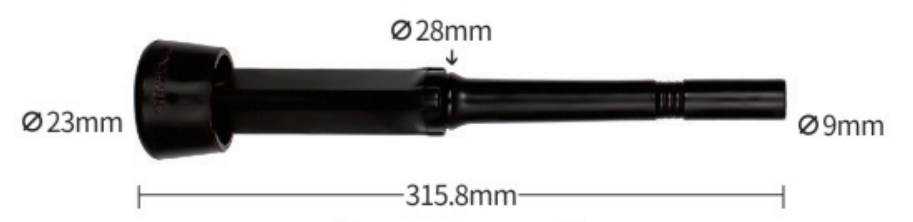

A milking liner with a listed length of 315.8 mm, shown with a 148.8 mm matched-shell reference. The liner drawing lists diameters of 23 / 28 / 9 mm, and the shell drawing lists 40 / 24 mm. Select using the complete drawing dimensions.

Key features at a glance

Liner length: 315.8 mm
Liner drawing diameters: 23 / 28 / 9 mm
Matched shell length: 148.8 mm

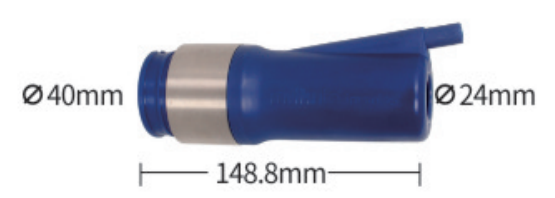

Matched shell drawing diameters: 40 / 24 mm

Choose your configuration

Model	Liner length	Liner drawing diameters	Shell reference length	Shell drawing diameters
ERV-DF-LIN-00019	315.8 mm	23 / 28 / 9 mm	148.8 mm	40 / 24 mm
ERV-DF-LIN-00020	318 mm	24 / 26.7 / 10 mm	148.8 mm	40 / 24 mm

Match the full liner and shell drawing

The liner length is listed precisely as 315.8 mm, with a 148.8 mm shell reference. Preserve these decimal measurements when comparing the existing part. The comparison identifies dimensions, not guaranteed interchangeability. Confirm material, operating requirements and whether a shell is included in the quotation.

Request a quote for ERV-DF-LIN-00019

Additional product details

This black rubber liner is listed in sets of four for cow milking equipment. Compare its 315.8 mm length and drawing diameters with the removed liner, then check the matched 148.8 mm shell configuration before ordering.

Product photographs and details

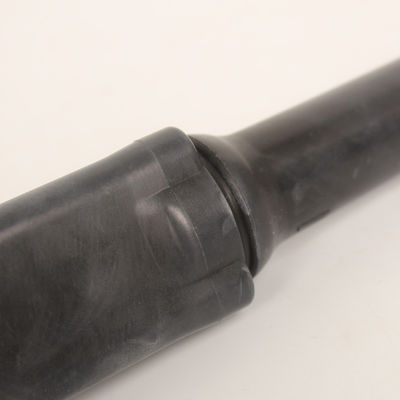

Close-up of the moulded body and seating profile for comparison with the existing liner.

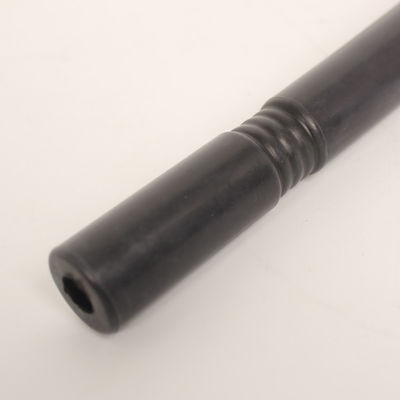

Milking liner outlet connection close-up — Close-up of the outlet and connecting end. Compare with the dimensions in the specification table.

Specifications

315.8 mm Milking Liner for 148.8 mm Shell (ERV-DF-LIN-00019) — specifications
Liner length	315.8 mm
Liner drawing diameters	23 / 28 / 9 mm
Matched shell length	148.8 mm
Matched shell drawing diameters	40 / 24 mm
Material	Rubber
Colour	Black
Listed pack quantity	4 liners

Frequently asked questions

What are the liner and matched-shell dimensions?

Liner length: 315.8 mm.
Liner drawing diameters: 23 / 28 / 9 mm.
Matched shell length: 148.8 mm.
Matched shell drawing diameters: 40 / 24 mm. Diameter values correspond to the labels in the product drawing.

Is the shell included with the liner?

The shell image is provided as a dimensional reference. Confirm liner material, compatible shell, supplied components and quantity before ordering.
