318 mm Milking Liner for 148.8 mm Shell

Name: 318 mm Milking Liner for 148.8 mm Shell
SKU: ERV-DF-LIN-00020

Request a Quote

Send a quotation request with this product already selected.

Browse this product in: Milking Liners, Teat Cups & Plugs.

Product code: ERV-DF-LIN-00020

318 mm Milking Liner for 148.8 mm Shell - ERV-DF-LIN-00020

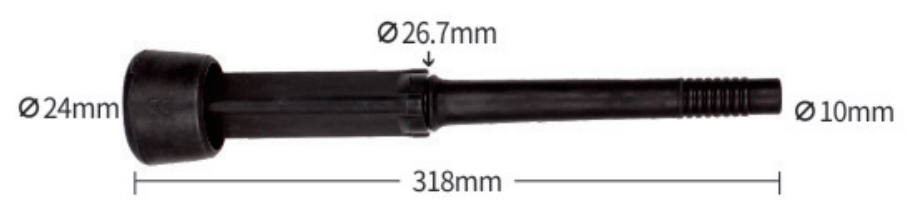

A milking liner with a listed length of 318 mm, shown with a 148.8 mm matched-shell reference. The liner drawing lists diameters of 24 / 26.7 / 10 mm, and the shell drawing lists 40 / 24 mm. Select using the complete drawing dimensions.

Key features at a glance

Liner length: 318 mm
Liner drawing diameters: 24 / 26.7 / 10 mm
Matched shell length: 148.8 mm

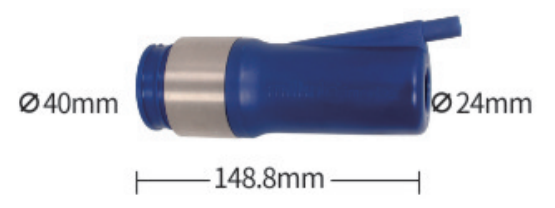

Matched shell drawing diameters: 40 / 24 mm

Choose your configuration

Model	Liner length	Liner drawing diameters	Shell reference length	Shell drawing diameters
ERV-DF-LIN-00019	315.8 mm	23 / 28 / 9 mm	148.8 mm	40 / 24 mm
ERV-DF-LIN-00020	318 mm	24 / 26.7 / 10 mm	148.8 mm	40 / 24 mm

Match the full liner and shell drawing

This 318 mm liner lists the same 148.8 mm shell length and 40 / 24 mm shell diameters as the 315.8 mm liner, but the liner length and drawing diameters differ. The comparison identifies dimensions, not guaranteed interchangeability. Confirm material, operating requirements and whether a shell is included in the quotation.

Request a quote for ERV-DF-LIN-00020

Additional product details

This liner is listed in sets of four, with vented and unvented configurations available to specify. Confirm the vent requirement as well as the 318 mm liner length and matched shell dimensions when requesting a quotation.

Product photographs and details

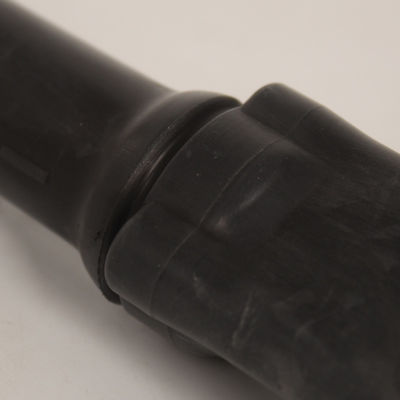

Close-up of the moulded body and seating profile for comparison with the existing liner.

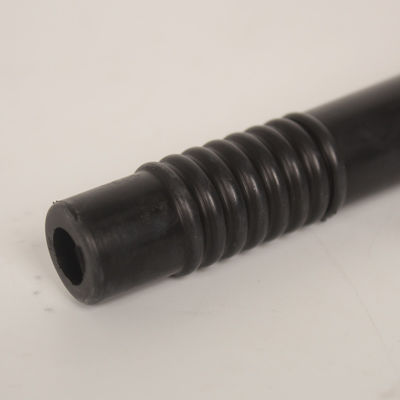

Milking liner outlet connection close-up — Close-up of the outlet and connecting end. Compare with the dimensions in the specification table.

Specifications

318 mm Milking Liner for 148.8 mm Shell (ERV-DF-LIN-00020) — specifications
Liner length	318 mm
Liner drawing diameters	24 / 26.7 / 10 mm
Matched shell length	148.8 mm
Matched shell drawing diameters	40 / 24 mm
Listed pack quantity	4 liners
Vent configuration	With or without vent; specify when ordering

Frequently asked questions

What are the liner and matched-shell dimensions?

Liner length: 318 mm.
Liner drawing diameters: 24 / 26.7 / 10 mm.
Matched shell length: 148.8 mm.
Matched shell drawing diameters: 40 / 24 mm. Diameter values correspond to the labels in the product drawing.

Is the shell included with the liner?

The shell image is a dimensional reference; confirm whether a shell is included in the quotation. For ERV-DF-LIN-00020, specify the version with or without a vent. Check the listed 318 mm liner length, 148.8 mm matched-shell length and drawing dimensions together; length alone does not establish compatibility. Include quantity and destination country.
