Product code: ERV-DF-LIN-00017

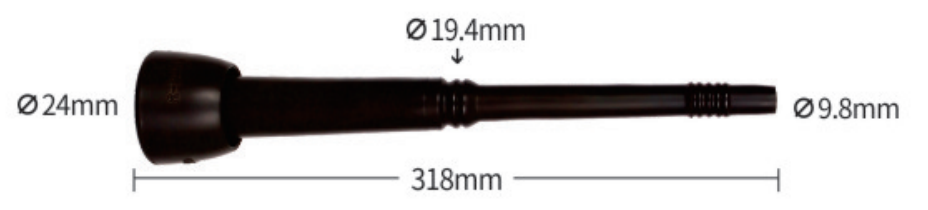

A milking liner with a listed length of 318 mm, shown with a 155 mm matched-shell reference. The liner drawing lists diameters of 24 / 19.4 / 9.8 mm, and the shell drawing lists 44 / 17 mm. Select using the complete drawing dimensions.
Key features at a glance
- Liner length: 318 mm
- Liner drawing diameters: 24 / 19.4 / 9.8 mm
- Matched shell length: 155 mm

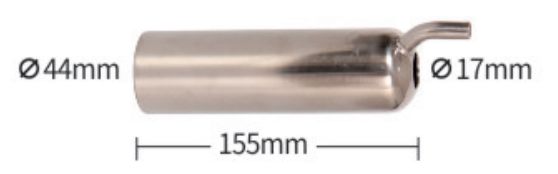

- Matched shell drawing diameters: 44 / 17 mm
Choose your configuration
| Model | Liner length | Liner drawing diameters | Shell reference length | Shell drawing diameters |
|---|---|---|---|---|
| ERV-DF-LIN-00012 | 293 mm | 24 / 20.5 / 10 mm | 155 mm | 44 / 17 mm |
| ERV-DF-LIN-00014 | 325 mm | 25 / 22 / 10 mm | 155 mm | 44 / 19 mm |
| ERV-DF-LIN-00017 | 318 mm | 24 / 19.4 / 9.8 mm | 155 mm | 44 / 17 mm |
| ERV-DF-LIN-00022 | 292 mm | 25 / 19.4 / 8 mm | 155 mm | 44 / 17 mm |
| ERV-DF-LIN-00024 | 322 mm | 25 / 31 / 10 mm | 155 mm | 44 / 29 mm |
Match the full liner and shell drawing
This 318 mm liner uses a 155 mm shell reference. Another 318 mm liner lists a 148.8 mm shell and different diameters; use the model code and drawing together. The comparison identifies dimensions, not guaranteed interchangeability. Confirm material, operating requirements and whether a shell is included in the quotation.
Specifications
| Liner length | 318 mm |
|---|---|
| Liner drawing diameters | 24 / 19.4 / 9.8 mm |
| Matched shell length | 155 mm |
| Matched shell drawing diameters | 44 / 17 mm |
Frequently asked questions
What are the liner and matched-shell dimensions?
- Liner length: 318 mm.
- Liner drawing diameters: 24 / 19.4 / 9.8 mm.
- Matched shell length: 155 mm.
- Matched shell drawing diameters: 44 / 17 mm. Diameter values correspond to the labels in the product drawing.
Is the shell included with the liner?
The shell image is provided as a dimensional reference. Confirm liner material, compatible shell, supplied components and quantity before ordering.
