Product code: ERV-DF-LIN-00023
A milking liner with a listed length of 322 mm, shown with a 148 mm matched-shell reference. The liner drawing lists diameters of 22 / 25.5 / 13.5 mm, and the shell drawing lists 42.5 / 22.5 mm. Select using the complete drawing dimensions.
Key features at a glance
- Liner length: 322 mm

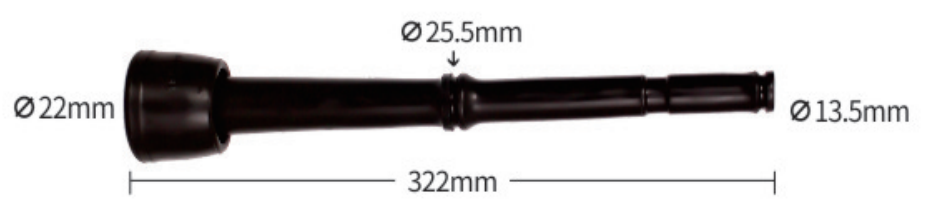

- Liner drawing diameters: 22 / 25.5 / 13.5 mm
- Matched shell length: 148 mm

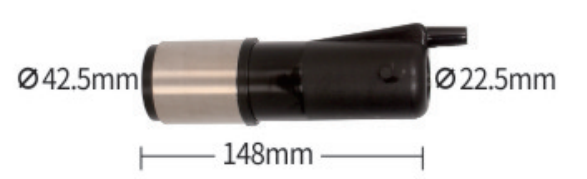

- Matched shell drawing diameters: 42.5 / 22.5 mm
Choose your configuration
| Model | Liner length | Liner drawing diameters | Shell reference length | Shell drawing diameters |
|---|---|---|---|---|
| ERV-DF-LIN-00015 | 312 mm | 24 / 21 / 10 mm | 148 mm | 44 / 20 mm |
| ERV-DF-LIN-00023 | 322 mm | 22 / 25.5 / 13.5 mm | 148 mm | 42.5 / 22.5 mm |
Match the full liner and shell drawing
This 322 mm liner uses a 148 mm shell reference and 42.5 / 22.5 mm shell drawing diameters. The separate 322 mm liner for a 155 mm shell has different dimensions. The comparison identifies dimensions, not guaranteed interchangeability. Confirm material, operating requirements and whether a shell is included in the quotation.
Additional product details
Long rubber liner format
This black rubber liner uses the 322 mm long format and the reviewed 148 mm shell pairing. Its 13.5 mm drawing dimension at the outlet is a useful comparison point when matching an existing assembly.
Use the dimensioned profile
Provide the old liner's mouth, barrel and tail measurements with the shell dimensions. Confirm the drawing orientation before comparing values; a shared length does not make two liner profiles interchangeable.
Specifications
| Liner length | 322 mm |
|---|---|
| Liner drawing diameters | 22 / 25.5 / 13.5 mm |
| Matched shell length | 148 mm |
| Matched shell drawing diameters | 42.5 / 22.5 mm |
| Material | Rubber |
Frequently asked questions
What are the liner and matched-shell dimensions?
- Liner length: 322 mm.
- Liner drawing diameters: 22 / 25.5 / 13.5 mm.
- Matched shell length: 148 mm.
- Matched shell drawing diameters: 42.5 / 22.5 mm. Diameter values correspond to the labels in the product drawing.
Is the shell included with the liner?
The shell image is provided as a dimensional reference. Confirm liner material, compatible shell, supplied components and quantity before ordering.
