Product code: ERV-DF-LIN-00024
A milking liner with a listed length of 322 mm, shown with a 155 mm matched-shell reference. The liner drawing lists diameters of 25 / 31 / 10 mm, and the shell drawing lists 44 / 29 mm. Select using the complete drawing dimensions.
Key features at a glance
- Liner length: 322 mm

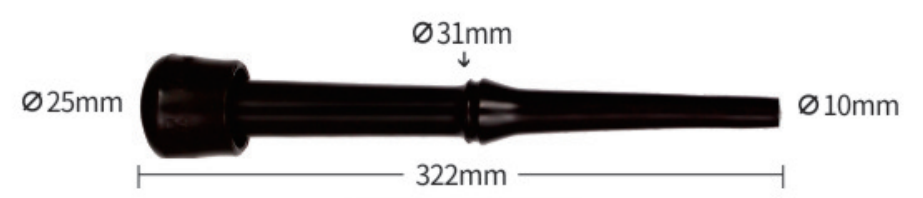

- Liner drawing diameters: 25 / 31 / 10 mm
- Matched shell length: 155 mm

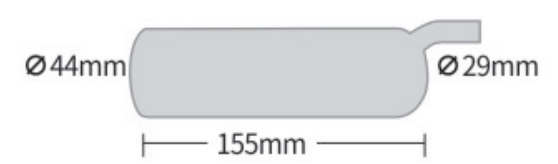

- Matched shell drawing diameters: 44 / 29 mm
Choose your configuration
| Model | Liner length | Liner drawing diameters | Shell reference length | Shell drawing diameters |
|---|---|---|---|---|
| ERV-DF-LIN-00012 | 293 mm | 24 / 20.5 / 10 mm | 155 mm | 44 / 17 mm |
| ERV-DF-LIN-00014 | 325 mm | 25 / 22 / 10 mm | 155 mm | 44 / 19 mm |
| ERV-DF-LIN-00017 | 318 mm | 24 / 19.4 / 9.8 mm | 155 mm | 44 / 17 mm |
| ERV-DF-LIN-00022 | 292 mm | 25 / 19.4 / 8 mm | 155 mm | 44 / 17 mm |
| ERV-DF-LIN-00024 | 322 mm | 25 / 31 / 10 mm | 155 mm | 44 / 29 mm |
Match the full liner and shell drawing
Select the 322 mm liner with a 155 mm shell reference and 44 / 29 mm shell drawing diameters. Do not confuse it with the 322 mm version for a 148 mm shell. The comparison identifies dimensions, not guaranteed interchangeability. Confirm material, operating requirements and whether a shell is included in the quotation.
Additional product details
322 mm liner with a different profile
This long black rubber liner shares its overall length with other models but uses a different barrel and outlet profile. The reviewed 155 mm shell pairing should be checked against the equipment already installed.
Confirm shell and tail fit
Compare all drawing dimensions and the retaining shape at the shell ends. Include photographs of the assembled cup when ordering so that a same-length liner with a different profile is not substituted.
Specifications
| Liner length | 322 mm |
|---|---|
| Liner drawing diameters | 25 / 31 / 10 mm |
| Matched shell length | 155 mm |
| Matched shell drawing diameters | 44 / 29 mm |
| Material | Rubber |
Frequently asked questions
What are the liner and matched-shell dimensions?
- Liner length: 322 mm.
- Liner drawing diameters: 25 / 31 / 10 mm.
- Matched shell length: 155 mm.
- Matched shell drawing diameters: 44 / 29 mm. Diameter values correspond to the labels in the product drawing.
Is the shell included with the liner?
The shell image is provided as a dimensional reference. Confirm liner material, compatible shell, supplied components and quantity before ordering.
