Product code: ERV-DF-LIN-00016

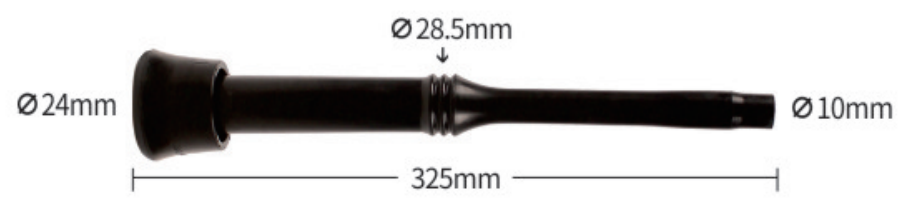

A milking liner with a listed length of 325 mm, shown with a 147 mm matched-shell reference. The liner drawing lists diameters of 24 / 28.5 / 10 mm, and the shell drawing lists 44 / 27 mm. Select using the complete drawing dimensions.
Key features at a glance
- Liner length: 325 mm
- Liner drawing diameters: 24 / 28.5 / 10 mm
- Matched shell length: 147 mm

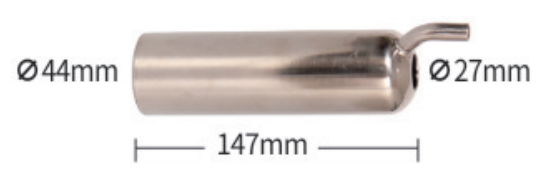

- Matched shell drawing diameters: 44 / 27 mm
Choose your configuration
| Model | Liner length | Liner drawing diameters | Shell reference length | Shell drawing diameters |
|---|---|---|---|---|
| ERV-DF-LIN-00016 | 325 mm | 24 / 28.5 / 10 mm | 147 mm | 44 / 27 mm |
| ERV-DF-LIN-00025 | 175 mm | 24 / 19.5 mm | 147 mm | 44 / 27 mm |
Match the full liner and shell drawing
Select the 325 mm liner with the 147 mm shell reference and 44 / 27 mm shell diameters. The 325 mm liner for a 155 mm shell is a different configuration. The comparison identifies dimensions, not guaranteed interchangeability. Confirm material, operating requirements and whether a shell is included in the quotation.
Additional product details
The rubber liner is listed in sets of four. Use the 325 mm liner length together with the matched 147 mm shell length and drawing diameters to identify the required configuration. A matching product name alone does not confirm fit.

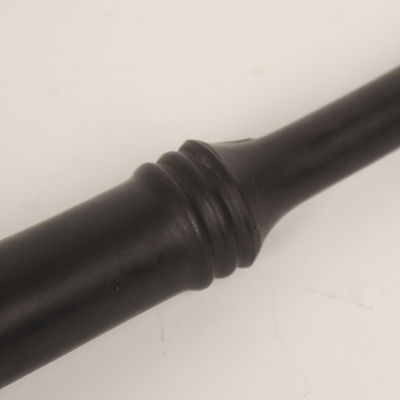

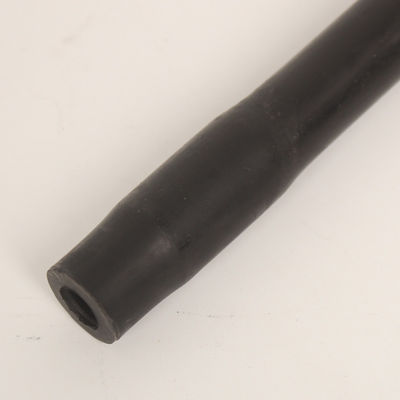

Product photographs and details
Specifications
| Liner length | 325 mm |
|---|---|
| Liner drawing diameters | 24 / 28.5 / 10 mm |
| Matched shell length | 147 mm |
| Matched shell drawing diameters | 44 / 27 mm |
| Material | Rubber |
| Listed pack quantity | 4 liners |
Frequently asked questions
What are the liner and matched-shell dimensions?
- Liner length: 325 mm.
- Liner drawing diameters: 24 / 28.5 / 10 mm.
- Matched shell length: 147 mm.
- Matched shell drawing diameters: 44 / 27 mm. Diameter values correspond to the labels in the product drawing.
Is the shell included with the liner?
The shell image is provided as a dimensional reference. Confirm liner material, compatible shell, supplied components and quantity before ordering.
