7.5 x 13.5 mm Rubber Twin Pulse Tube 50 m Roll

Name: 7.5 x 13.5 mm Rubber Twin Pulse Tube 50 m Roll
SKU: ERV-DF-TUB-00007

Browse this product in: Milk & Pulse Tubes.

Product code: ERV-DF-TUB-00007

7.5 x 13.5 mm Rubber Twin Pulse Tube 50 m Roll - ERV-DF-TUB-00007

A rubber twin pulse tube supplied in 50 m rolls, with listed inner diameter of 7.5 mm and outer diameter of 13.5 mm. Select the twin profile as well as the material and size.

Key features at a glance

Material: Rubber
Inner diameter: 7.5 mm
Outer diameter: 13.5 mm
Roll length: 50 m
Configuration: Twin pulse tube

Choose your configuration

Model	Material	Configuration	Listed ID x OD
ERV-DF-TUB-00004	PVC	Single	8 x 14 mm
ERV-DF-TUB-00005	Rubber	Single	7.5 x 13.5 mm
ERV-DF-TUB-00006	PVC	Twin; confirm overall profile width	8 x 14 mm
ERV-DF-TUB-00007	Rubber	Twin; confirm overall profile width	7.5 x 13.5 mm

Match the twin rubber profile

Confirm overall profile width and spacing alongside the listed diameters. The 13.5 mm value should not be treated as the total twin-profile width; provide routing and connection details for matching.

Request a quote for ERV-DF-TUB-00007

Additional product details

This twin rubber pulse tube is supplied in a 50 m roll for preparing the lengths needed in a milking installation. Each passage is listed at 7.5 mm inner diameter and 13.5 mm outer diameter. Match the fittings and required length when replacing worn tubing.

Product photographs and details

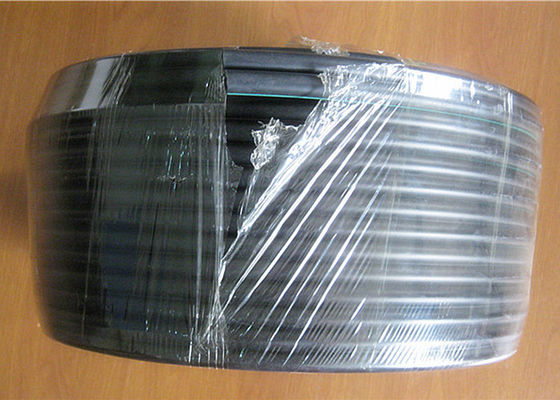

Twin rubber pulse tube roll — Black twin rubber pulse tube shown in its wrapped roll.

Specifications

7.5 x 13.5 mm Rubber Twin Pulse Tube 50 m Roll (ERV-DF-TUB-00007) — specifications
Material	Rubber
Inner diameter	7.5 mm
Outer diameter	13.5 mm
Roll length	50 m
Configuration	Twin pulse tube
Colour	Black
Length preparation	Cut to required length

Frequently asked questions

What specifications are listed?

Material: Rubber; Inner diameter: 7.5 mm; Outer diameter: 13.5 mm; Roll length: 50 m; Configuration: Twin pulse tube.

What should I confirm before ordering?

Confirm inner and outer diameter, required length, connection fit and operating conditions before ordering. Provide ERV-DF-TUB-00007, quantity and destination country.
