8 x 14 mm PVC Twin Pulse Tube 50 m Roll

Name: 8 x 14 mm PVC Twin Pulse Tube 50 m Roll
SKU: ERV-DF-TUB-00006

Browse this product in: Milk & Pulse Tubes.

Product code: ERV-DF-TUB-00006

8 x 14 mm PVC Twin Pulse Tube 50 m Roll - ERV-DF-TUB-00006

A PVC twin pulse tube in a 50 m roll, listing 8 mm inner diameter and 14 mm outer diameter. The twin configuration should be specified separately from the single pulse tube.

Key features at a glance

Material: PVC
Inner diameter: 8 mm
Outer diameter: 14 mm
Roll length: 50 m
Configuration: Twin pulse tube

Choose your configuration

Model	Material	Configuration	Listed ID x OD
ERV-DF-TUB-00004	PVC	Single	8 x 14 mm
ERV-DF-TUB-00005	Rubber	Single	7.5 x 13.5 mm
ERV-DF-TUB-00006	PVC	Twin; confirm overall profile width	8 x 14 mm
ERV-DF-TUB-00007	Rubber	Twin; confirm overall profile width	7.5 x 13.5 mm

Confirm the complete twin profile

Provide the required twin-tube spacing and overall profile dimensions for confirmation. The listed outer diameter does not state the full width of the twin assembly. Confirm both bore fit and routing clearance.

Request a quote for ERV-DF-TUB-00006

Additional product details

The twin PVC pulse tube provides two connected air passages between the pulsator and claw. Each passage is listed at 8 mm inner diameter and 14 mm outer diameter. Specify the required cut lengths and match the twin outlet arrangement to your equipment.

Product photographs and details

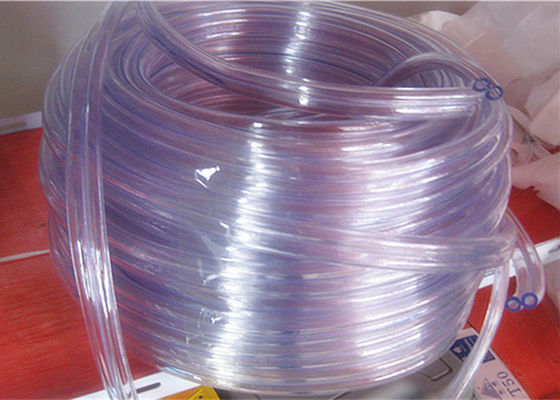

Twin PVC pulse tube roll — Twin PVC tube showing the paired passages at the ends.

Specifications

8 x 14 mm PVC Twin Pulse Tube 50 m Roll (ERV-DF-TUB-00006) — specifications
Material	PVC
Inner diameter	8 mm
Outer diameter	14 mm
Roll length	50 m
Configuration	Twin pulse tube
Appearance	Transparent
Length preparation	Cut to required length

Frequently asked questions

What specifications are listed?

Material: PVC; Inner diameter: 8 mm; Outer diameter: 14 mm; Roll length: 50 m; Configuration: Twin pulse tube.

What should I confirm before ordering?

Confirm inner and outer diameter, required length, connection fit and operating conditions before ordering. Provide ERV-DF-TUB-00006, quantity and destination country.
