Cross-Frame Milking Jetter Tray

Name: Cross-Frame Milking Jetter Tray
SKU: ERV-DF-PAR-00031

Browse this product in: Dairy & Farm Cleaning Equipment.

Product code: ERV-DF-PAR-00031

Cross-Frame Milking Jetter Tray - ERV-DF-PAR-00031

Cross-Frame Milking Jetter Tray for a milking cleaning-station configuration. The illustrated design is identified by cross frame. Compare the physical layout with your current installation and provide dimensions when requesting a matching tray or assembly.

Key features at a glance

Component type: Milking parlor jetter tray
Design: Cross frame

Choose your configuration

Model	Illustrated design
ERV-DF-PAR-00024	Hinged angled bracket
ERV-DF-PAR-00025	Vertical bracket
ERV-DF-PAR-00030	Silver body with support bracket
ERV-DF-PAR-00031	Cross frame

Match the cleaning-station layout

Check the cross-frame dimensions and mounting points against the available space. Send the current frame dimensions and socket layout for configuration review. Confirm the parts supplied with the tray or assembly and compatibility with your cleaning setup before ordering.

Request a quote for ERV-DF-PAR-00031

Additional product details

This cross-frame jetter tray is listed in 304 stainless steel, with a weight of 1.8 kg and a foldable mounting arrangement. The factory lists 38 mm and 50 mm clamp options. The detail photographs show the slotted mounting plate, washing posts and underside connection. Specify the required clamp size and compare the mounting and liner interfaces with your existing cluster; these options do not establish universal fit.

Product photographs and details

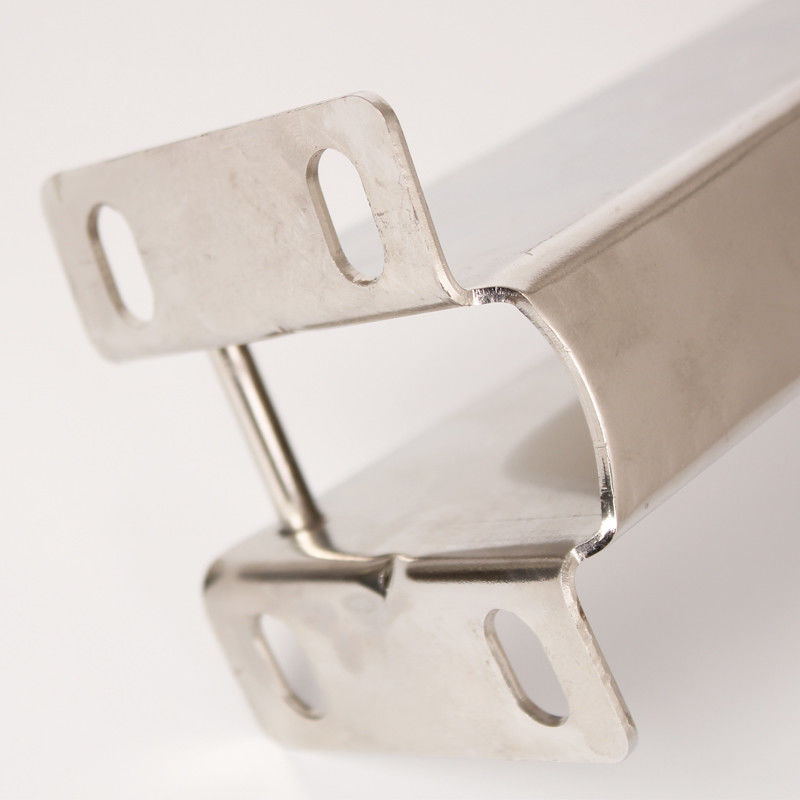

Jetter frame slotted mounting plate — Close-up of the slotted mounting plate. Compare the fixing arrangement with your available mounting position.

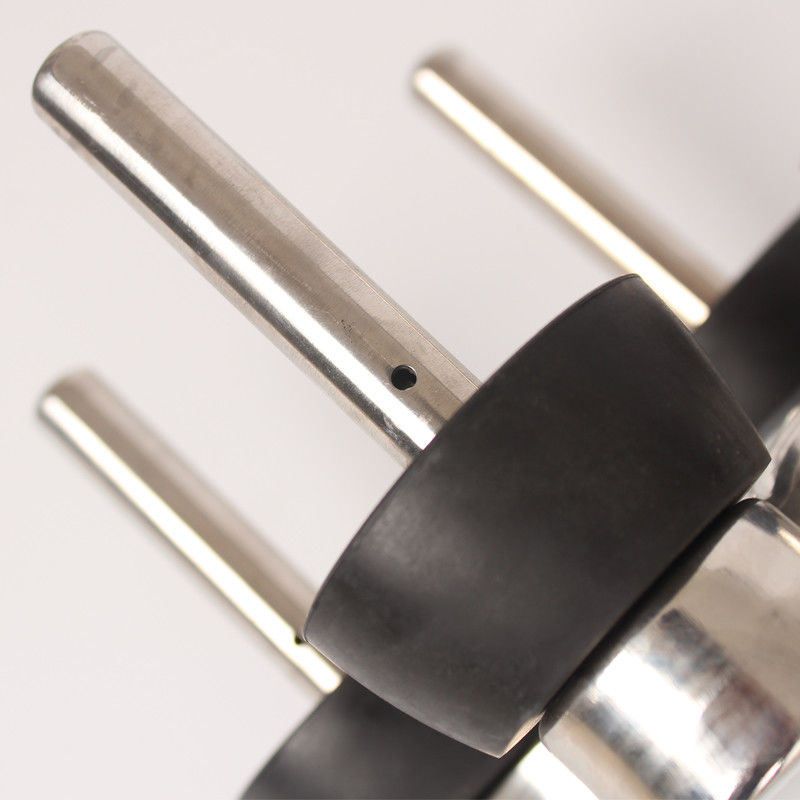

Jetter washing post and socket detail — Close-up of the washing post opening and surrounding socket for checking the liner interface.

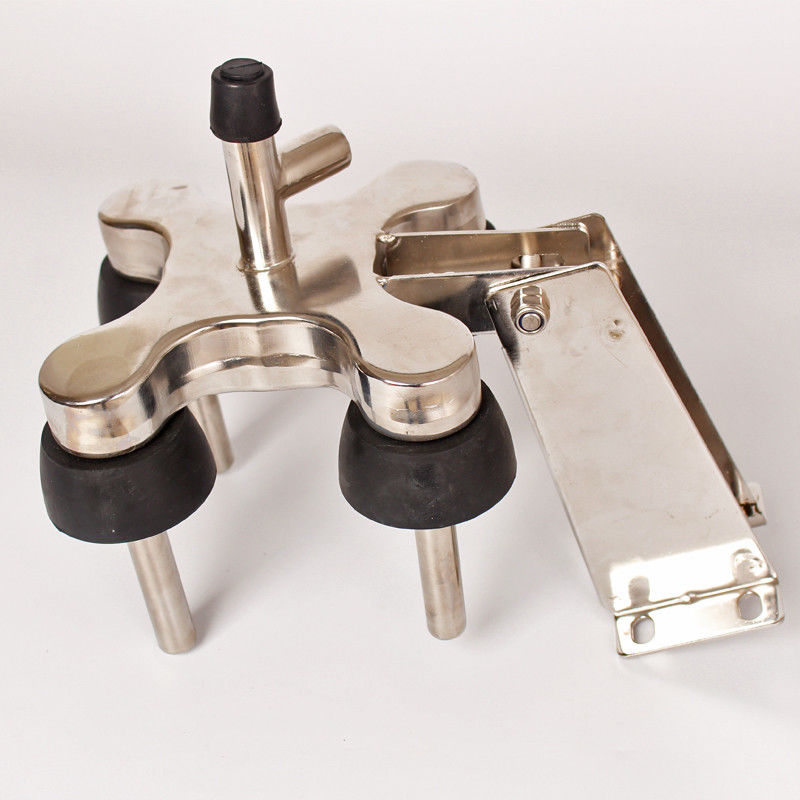

Cross-frame jetter underside connection — Underside view showing the connection tube, frame and folding bracket.

Specifications

Cross-Frame Milking Jetter Tray (ERV-DF-PAR-00031) — specifications
Component type	Milking parlor jetter tray
Design	Cross frame
Material	304 stainless steel
Listed weight	1.8 kg
Clamp size options	38 mm; 50 mm
Mounting type	Foldable

Frequently asked questions

What component or configuration is listed?

ERV-DF-PAR-00031 is a cross-frame milking jetter tray listed in 304 stainless steel, with foldable mounting and a listed weight of 1.8 kg. The clamp size options are 38 mm and 50 mm. Specify the required clamp size and confirm mounting dimensions, cleaning connections and supplied components before ordering.

How do I confirm compatibility?

Provide your existing equipment model, connection dimensions and photos so fit can be checked before ordering. Confirm which components are included. Include ERV-DF-PAR-00031, quantity and destination country.
