Milking Jetter Tray with Vertical Bracket

Name: Milking Jetter Tray with Vertical Bracket
SKU: ERV-DF-PAR-00025

Browse this product in: Dairy & Farm Cleaning Equipment.

Product code: ERV-DF-PAR-00025

Milking Jetter Tray with Vertical Bracket - ERV-DF-PAR-00025

Milking Jetter Tray with Vertical Bracket for a milking cleaning-station configuration. The illustrated design is identified by vertical bracket. Compare the physical layout with your current installation and provide dimensions when requesting a matching tray or assembly.

Key features at a glance

Component type: Milking parlor jetter tray
Design: Vertical bracket

Choose your configuration

Model	Illustrated design
ERV-DF-PAR-00024	Hinged angled bracket
ERV-DF-PAR-00025	Vertical bracket
ERV-DF-PAR-00030	Silver body with support bracket
ERV-DF-PAR-00031	Cross frame

Match the cleaning-station layout

Check the vertical bracket orientation and mounting position. Include bracket height, hole spacing and a photo of the current installation in your enquiry. Confirm the parts supplied with the tray or assembly and compatibility with your cleaning setup before ordering.

Request a quote for ERV-DF-PAR-00025

Product photographs and details

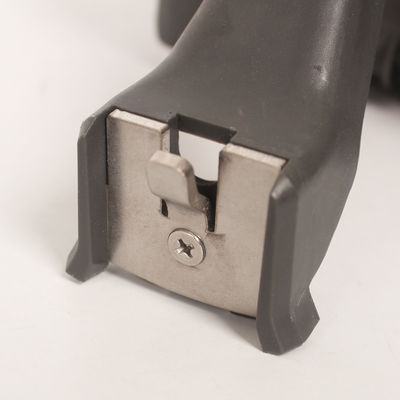

Vertical bracket upper mounting detail — Upper attachment detail for comparing the mounting interface.

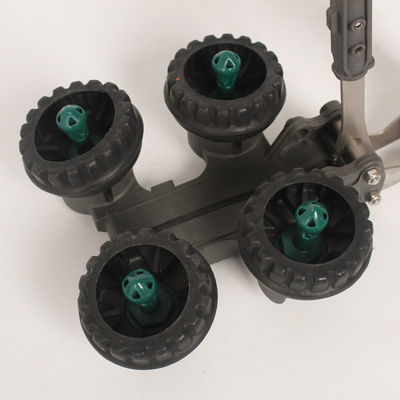

Jetter tray cup layout — View of the four cup openings and supporting frame.

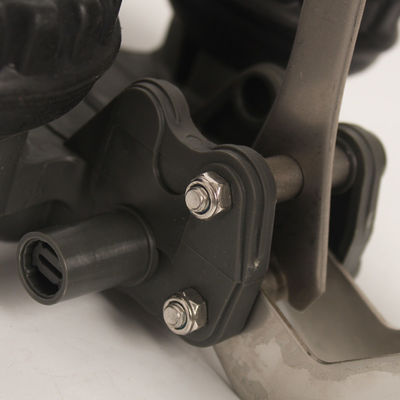

Jetter tray pivot fasteners — Close-up of the pivot and fixing bolts.

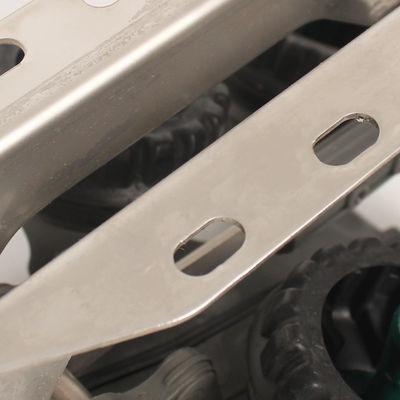

Vertical bracket slotted mounting holes — Slotted mounting holes on the bracket. Confirm bracket dimensions and connection fit with your enquiry.

Additional product details

Vertical bracket arrangement

This jetter tray has a vertical mounting-bracket configuration, with the factory describing a folding arrangement. It supports a compatible milking cluster at the washing position.

Confirm fixing and clearance

Request the bracket drawing and mounting-hole dimensions before installation. Check the folded and working positions against the surrounding pipework, together with the jetter-head fit to the liners.

Specifications

Milking Jetter Tray with Vertical Bracket (ERV-DF-PAR-00025) — specifications
Component type	Milking parlor jetter tray
Design	Vertical bracket

Frequently asked questions

What component or configuration is listed?

Component type: Milking parlor jetter tray; Design: Vertical bracket.

How do I confirm compatibility?

Provide your existing equipment model, connection dimensions and photos so fit can be checked before ordering. Confirm which components are included. Include ERV-DF-PAR-00025, quantity and destination country.
