Hinged Milking Jetter Tray with Angled Bracket

Name: Hinged Milking Jetter Tray with Angled Bracket
SKU: ERV-DF-PAR-00024

Browse this product in: Dairy & Farm Cleaning Equipment.

Product code: ERV-DF-PAR-00024

Hinged Milking Jetter Tray with Angled Bracket - ERV-DF-PAR-00024

Hinged Milking Jetter Tray with Angled Bracket for a milking cleaning-station configuration. The illustrated design is identified by hinged angled bracket. Compare the physical layout with your current installation and provide dimensions when requesting a matching tray or assembly.

Key features at a glance

Component type: Milking parlor jetter tray
Design: Hinged angled bracket

Choose your configuration

Model	Illustrated design
ERV-DF-PAR-00024	Hinged angled bracket
ERV-DF-PAR-00025	Vertical bracket
ERV-DF-PAR-00030	Silver body with support bracket
ERV-DF-PAR-00031	Cross frame

Match the cleaning-station layout

Check the hinged angled bracket against the mounting position and available folding clearance. Send mounting-hole spacing and the existing tray dimensions. Confirm the parts supplied with the tray or assembly and compatibility with your cleaning setup before ordering.

Request a quote for ERV-DF-PAR-00024

Product photographs and details

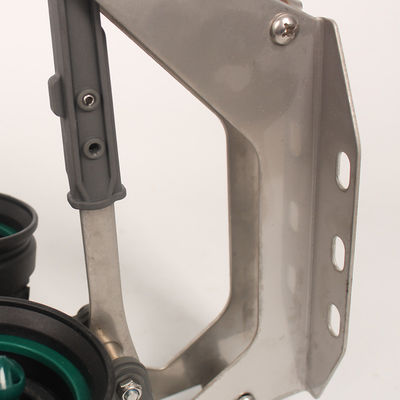

Angled bracket mounting holes — Close-up of the mounting bracket and hole arrangement. Compare with the available mounting position.

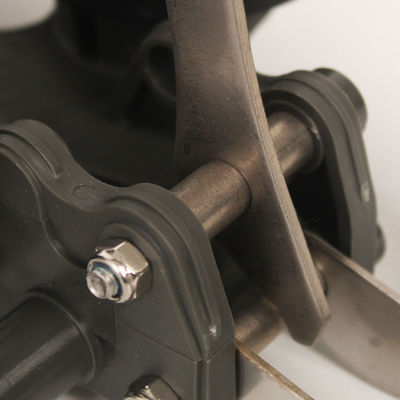

Jetter tray hinge connection — Close-up of the pivot and fasteners connecting the tray to its bracket.

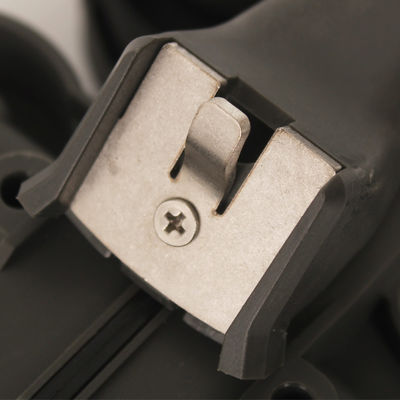

Jetter tray upper mounting detail — Upper bracket detail for checking the mounting interface.

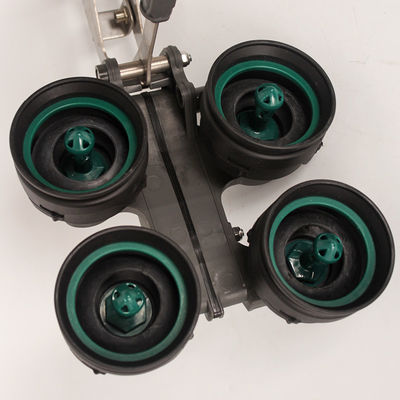

Four-cup jetter tray layout — View of the four cup openings and their arrangement on the hinged tray.

Additional product details

Hinged angled mounting bracket

This jetter tray uses a hinged, angled bracket for positioning the washing assembly. The factory lists screw fixing to a suitable wall or mounting surface.

Plan movement and access

Check the fixing-hole pattern, bracket clearance and hose route through the hinge movement. Provide the current cup and liner dimensions so the jetter heads can be matched to the cluster.

Specifications

Hinged Milking Jetter Tray with Angled Bracket (ERV-DF-PAR-00024) — specifications
Component type	Milking parlor jetter tray
Design	Hinged angled bracket

Frequently asked questions

What component or configuration is listed?

Component type: Milking parlor jetter tray; Design: Hinged angled bracket.

How do I confirm compatibility?

Provide your existing equipment model, connection dimensions and photos so fit can be checked before ordering. Confirm which components are included. Include ERV-DF-PAR-00024, quantity and destination country.
