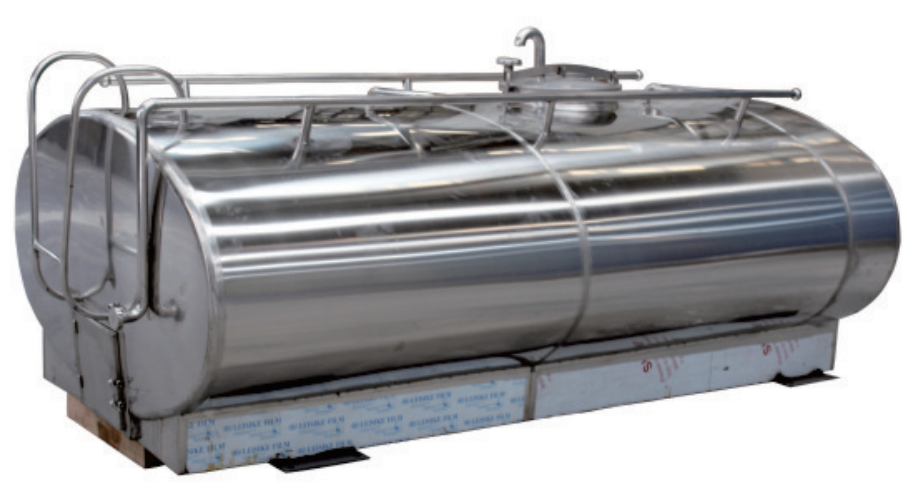

Milk Transport Tank without Cooling Unit 500-20000 L

Name: Milk Transport Tank without Cooling Unit 500-20000 L
SKU: ERV-DF-SYS-00009

Browse this product in: Milking Buckets & Milk Containers.

Product code: ERV-DF-SYS-00009

Milk Transport Tank without Cooling Unit 500-20000 L - ERV-DF-SYS-00009

This milk transport tank range covers 500-20000 L in 13 listed configurations and does not include a cooling unit. Select the required capacity, then compare the corresponding dimensions, weight and inner and outer layer thicknesses in the complete specification table. Mounting and fitting requirements should be checked against the intended vehicle or installation.

Key features at a glance

Capacity range: 500-20000 L
Cooling unit: Not included
Dimensions: Reference L x W x H; confirm final dimensions for the vehicle and mounting arrangement

Choose your configuration

Capacity group	Listed inner layer	Listed outer layer
500; 1000; 2000; 3000 L	2 mm	1.2 mm
5000; 6000; 8000; 10000; 12000; 13000; 15000; 17000; 20000 L	3 mm	1.5 mm

Build your quotation request

Include capacity, available mounting space and required fittings with your enquiry. Confirm final dimensions, material grade and mounting arrangement. Listed tank weight should not be treated as a vehicle payload rating, and no cooling unit is included.

Request a quote for ERV-DF-SYS-00009

Specifications

Milk Transport Tank without Cooling Unit 500-20000 L (ERV-DF-SYS-00009) — specifications
Capacity range	500-20000 L
Cooling unit	Not included
Dimensions	Reference L x W x H; confirm final dimensions for the vehicle and mounting arrangement
500 L configuration	1000 x 1000 x 900 mm; 300 kg; inner layer 2 mm; outer layer 1.2 mm
1000 L configuration	1500 x 1200 x 1200 mm; 400 kg; inner layer 2 mm; outer layer 1.2 mm
2000 L configuration	2100 x 1700 x 1300 mm; 600 kg; inner layer 2 mm; outer layer 1.2 mm
3000 L configuration	2500 x 1700 x 1300 mm; 800 kg; inner layer 2 mm; outer layer 1.2 mm
5000 L configuration	4200 x 1800 x 1400 mm; 1000 kg; inner layer 3 mm; outer layer 1.5 mm
6000 L configuration	5200 x 1900 x 1400 mm; 1200 kg; inner layer 3 mm; outer layer 1.5 mm
8000 L configuration	5400 x 2100 x 1400 mm; 1400 kg; inner layer 3 mm; outer layer 1.5 mm
10000 L configuration	5800 x 2100 x 1400 mm; 1600 kg; inner layer 3 mm; outer layer 1.5 mm
12000 L configuration	6300 x 2100 x 1400 mm; 1800 kg; inner layer 3 mm; outer layer 1.5 mm
13000 L configuration	6800 x 2100 x 1400 mm; 2000 kg; inner layer 3 mm; outer layer 1.5 mm
15000 L configuration	6800 x 2400 x 1400 mm; 2400 kg; inner layer 3 mm; outer layer 1.5 mm
17000 L configuration	7500 x 2400 x 1500 mm; 2800 kg; inner layer 3 mm; outer layer 1.5 mm
20000 L configuration	8400 x 2400 x 1600 mm; 3000 kg; inner layer 3 mm; outer layer 1.5 mm

Frequently asked questions

Does the transport tank include refrigeration?

No cooling unit is included. Specify any temperature-control requirements when requesting a quotation.

How do I choose a tank size?

Select the required capacity and confirm material grade, mounting arrangement, dimensions and fittings. The listed dimensions and weights are reference values, and the tank has no cooling unit.

Compare transport tank capacity configurations

Milk Transport Tank Buying Guide: Listed Capacities, Dimensions and Supply Scope. Review the listed reference dimensions, weights and layer thicknesses, then confirm final mounting and supplied components.
